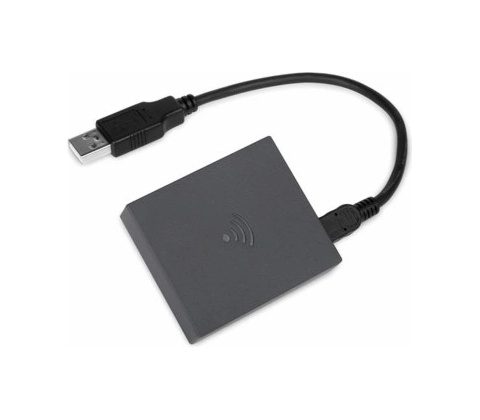

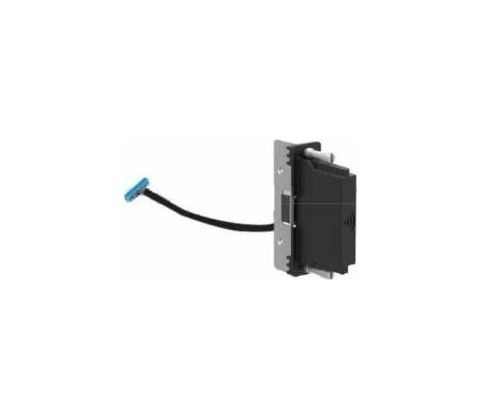

Lexmark Marknet N8370

In the Box

• Mounting hardware
• Pod for wireless card
• NFC Tag
• Wireless card
• Documentation

General Specs

Part no. 27X6510

Packaged size (HxWxD) 165 x 203 x 305 mm

Packaged weight 0.42 kg

Copying

Network type

IEEE 802.11 b/g/n Wireless SISO 1x1

Connectivity

Network type

IEEE 802.11 b/g/n Wireless SISO 1x1

Network protocol support

TCP/IP IPv6, TCP/IP IPv4, TCP, UDP

Network printing methods

LPR/LPD, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Secure IP (Port 96xx), FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)

Network management protocols

DHCP, APIPA (AutoIP), BOOTP, RARP, mDNS, IGMP, SLPv1, WINS, DDNS, SNMPv3, SNMPv1, SNMPv2c, Telnet, NTP, ICMP, HTTP, DNS, ARP, HTTPs (SSL1 /TLS), Finger

Network security

IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS

Wireless network

WEP Encryption (64- and 128-bit key), 1x1 802.11i b/g/n 72Mbps, WPA2 - Enterprise with Certificate Management, WPA2 - Personal

Wireless technology

NFC tap-to-print is supported with the NFC tag, Lexmark Mobile Direct and the Lexmark Mobile Print Application for Android., 802.11 b/g/n (2,4 GHz)

Channels 11 channel infrastructure and Ad Hoc for US/Canada., 13 channel infrastructure for Europe.

Operating range

The transmission speed and range varies in the surrounding environment., NFC range up to 10 mm., Direct print range up to 15,2 metres., Infrastructure mode range up to 45,7 metres.

Supported Operating Systems

Microsoft Windows operating systems supported

Windows Server 2008 x64 running Terminal Services, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows Server 2008, Windows Server 2008 R2, Windows 8 x64, Windows 7 x64, Windows Server 2012, Windows RT 8.1, Windows RT, Windows Server 2012 R2, Windows 8.1 x64, Windows Vista x64, Windows Vista, Windows 7

Apple Operating Systems Supported

Apple OS X (10.6, 10.7, 10.8, 10.9, 10.10), Apple iOS 4.2 and later

Linux operating systems supported

PCLinuxOS 2011, openSUSE 11.4, 12.1, 12.2, Linpus Linux Desktop 9.6, Ubuntu 12.04, 12.10, Fedora 17, 18, 19, Debian GNU/Linux 5.0, 6.0, Red Hat Enterprise Linux WS 4.0, 5.0, 6.0, SUSE Linux Enterprise Desktop 10, 11, Mint 10, 11, 12, 13, Red Flag Linux Desktop 6.0, SUSE Linux Enterprise Server 10, 11

Novell operating systems supported

Novell Open Enterprise Server on SUSE Linux Enterprise Server, Novell NetWare 5.1(SP 6+), 6.0(SP 3+) with Novell Distributed Print Services (NDPS), Novell NetWare 6.5 Open Enterprise Server

UNIX operating systems supported

Sun Solaris x86 10, 11, Sun Solaris SPARC 9, 10, 11, IBM AIX 5.3, 6.1, 7.1, HP-UX 11.11, 11.23, 11.31

Lexmark Mobile Direct support

Android 4.1.2, 4.22, 4.3, 4.4.2

Electrical -amp; Operation

Specified operating environment

• Humidity: 8 to 80% Relative Humidity
• Temperature: 16 to 32°C (60 to 90°F)

Product certifications 802.11n product (compatible with 802.11b/g), Wi-Fi Protected Access (WPA2™) Personal level security, Wi-Fi Protected Access (WPA2™) Enterprise level security

UNSPSC code 43201409

Country of origin

United States
